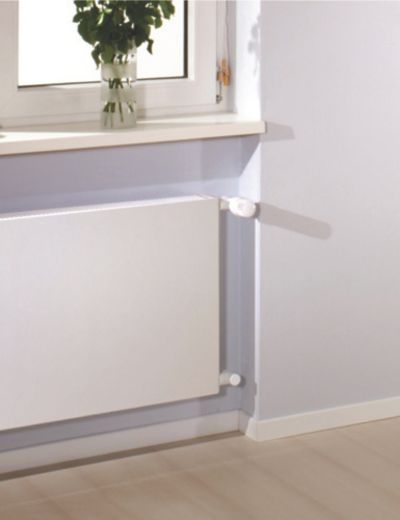

RADSON PLAN COMPACT
Panel Radiator
The PLAN COMPACT series are panel heaters with a flat front with a distinctive minimal style.
A reliable solution for any interior space, with a long life and an impeccable aesthetic result.
Made of high quality 1.25mm thick steel according to ΕΝ10130 and white RAL9016 color with electrostatic painting using the KTL method according to DIN 55900 1-2.
- Flat front view
- Outer loop
- 4 Side connections
Διαθέσιμες Εκδόσεις
11
Depth 62mm
21S
Depth 72mm
22
Depth 104mm
33
Depth 154mm
Single flat surface
Side connections 4 x G1/2”
Connection to a single-pipe or two-pipe system
Heights from 200 to 900mm
Lengths from 400 to 3000mm
Maximum operating pressure 10 bar
Test pressure 13 bar, PN10
Maximum operating temperature 110°C
Large selection of colors
Suitable wall or floor supports
10 year warranty
