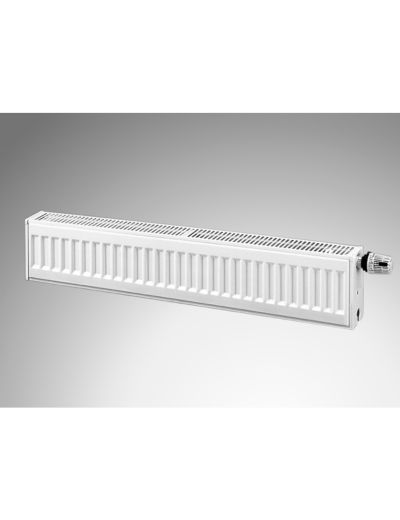

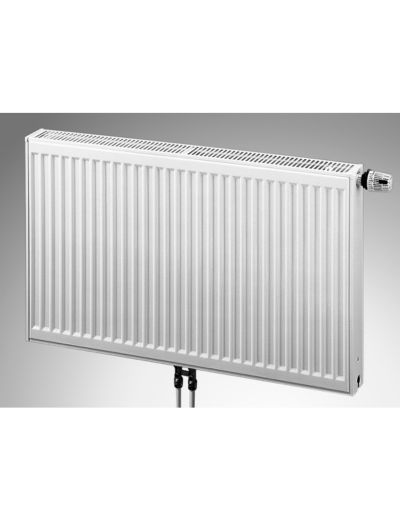

RADSON VENTIL COMPACT
Panel Radiator
The VENTIL COMPACT series, similarly to the COMPACT, is the classic series of steel panel radiators with neutral design. In addition, it includes an integrated loop on the right or left at the bottom of the body to save space on the side due to the absence of a switch. It is a high-quality body with excellent finish, wide range and high thermal efficiency.
Reliable solution for any interior, with a long service life. Made of high quality steel 1.25mm thick according to EN10130 and coloring white RAL9016 powder coated with the KTL method according to DIN 55900 1-2.
- Built-in loop
- 2 links down
- 4 Side links
Διαθέσιμες Εκδόσεις
11
Depth 62mm
21S
Depth 72mm
22
Depth 104mm
33
Depth 154mm
Loop bottom right/left 2 x G1/2"
Side connections 4 x G1/2''
Connection to a single-pipe or two-pipe system
Heights from 200 to 900mm
Lengths from 400 to 3000mm
Integrated thermostatic valve
Maximum operating pressure 10 bar
Test pressure 13 bar, PN10
Maximum operating temperature 110°C
Large selection of colors
Suitable wall or floor supports
10 year warranty
