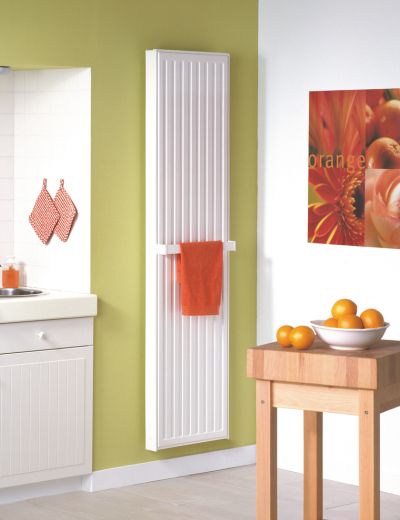

The VERTICAL series are classic steel heating panels in vertical positioning.
It is a high-quality body with excellent finish, wide range and high thermal efficiency. Reliable solution for any interior, with a long service life. Made of high quality steel 1.25mm thick according to EN10130 and coloring white RAL9016 powder coated with the KTL method according to DIN 55900 1-2. In case of installation of the body in a bathroom or kitchen area, a towel rail can also be adjusted.

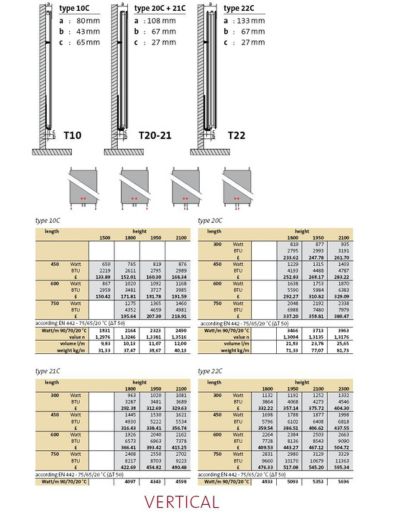

Διαθέσιμες Εκδόσεις
11
Depth 60mm
21S
Depth 70mm
22
Depth 102mm
33
Depth 152mm
Middle connection 2xG1/2", 500mm distance
Body height 1500, 1800, 1950, 2100, 2300 mm
Body length 300, 450, 600, 750mm
Maximum operating pressure 6 bar, PN6
Maximum operating temperature 110°C
Basic coloring white
Large selection of colors
Wall brackets
10 year warranty
