VarioComp – Low Profile Drywall Underfloor Heating
Economical operation with low supply temperatures
The VarioComp dry floor system is a complete heating system that guarantees optimal heat transfer. The VarioProfile 11.6 x 1.5 Laser multilayer pipe combined with the special Filling Compound T7 coating material, obtains a perfect fit with the 18mm thick knotted fiberboard. This feature allows for more direct heat transfer with higher efficiency than conventional floor heating systems. The end result is perfect comfort and energy saving conditions.
Due to its particularly low weight, high efficiency and quick installation, VarioComp is the perfect underfloor heating system for renovations of old buildings.

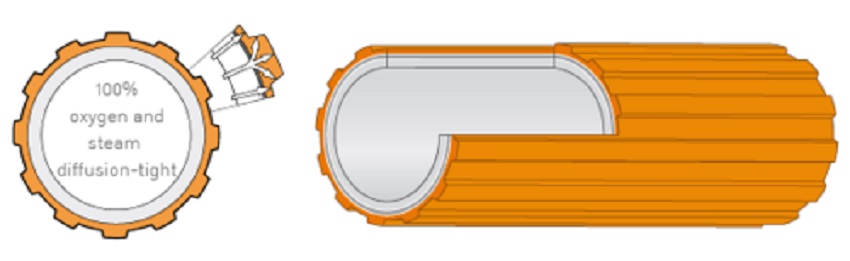

Multilayer tube VarioProfile 11.6 x 1.5 Laser
- 5-layer multilayer tube
- Polyethylene with Laser-welded aluminum interior
- Extremely stable configuration after easy bending
- Increased efficiency due to the corrugated surface
Safe and easy installation
The system is implemented in three steps:
• Installation of knotted FERMACELL® fiberboards tested to safety and hygiene standards by the IBR (Institute for Healthy and Ecological Building, Rosenheim)
• Free placement of the VarioProfile 11.6 x 1.5 Laser multilayer tube in either a “meander” or “snail” arrangement
• Next, the certified Filling Compound T7 covering material is laid over the entire surface
The final coating can be safely placed on the homogeneous substrate even 24 hours after application!
The final coating can be safely placed on the homogeneous substrate even 24 hours after application!
- Infrastructure
- Fermacell fiberboard plate 600 x 1000mm
- VarioProfile tube 11.6 x 1.5 laser
- Filing Compound T7 coating material
- Final investment
